UV-5R Camouflage Upgrade Two Way Radio VHF UHF Walkie Talkie 3800mAh Battery Walkie Talkie Portable Radio Transceiver

Regular price
$87.99
Sale price
$43.99
Shipping calculated at checkout.

Baofeng UV-5R Camouflage Upgrade Two Way Radio VHF UHF Walkie Talkie 3800mAh Battery Walkie Talkie Portable Radio Transceiver

_01_02_03_04_05_06_07_08

_09_10_11_12_13_14_15_16

_17 _18 _19 _20 _21

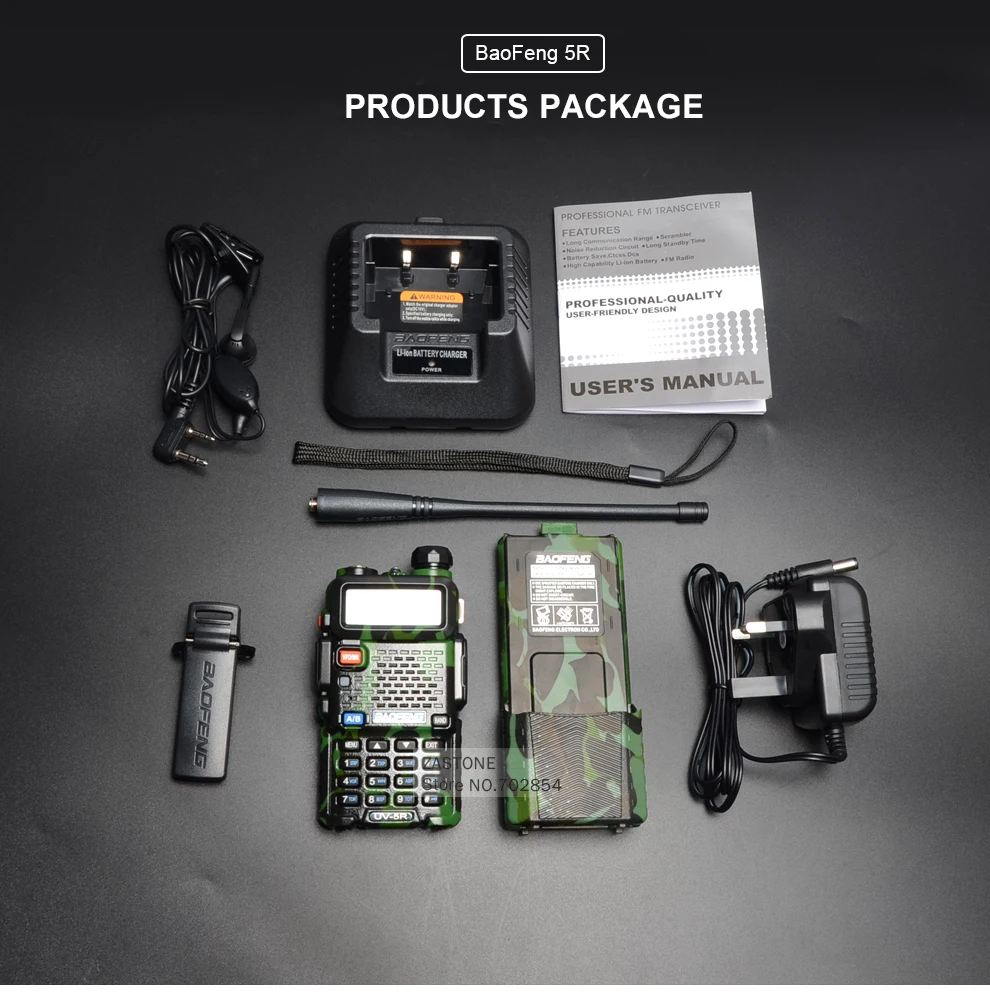

PACKAGE of unit

1 x UV-5R (VHF136-174 & UHF 400-520Mhz)
1 x 7.4V 3800mah Li-ion Battery Pack
1 x dual band Antenna
1 x Belt Clip
1 X ear hook earphone
1 x English Manual
1 x Desktop Charger ( 100V ~ 240V  US/EU/UK/AU plug )

Features/Functions

Dual-band handheld transceiver with display function menu on the display “LED”

Commercial FM radio receiver (65MHz-108MHz)

Built-in LED flashlight

DTMF encoded

Built-in RX CTCSS/DCS scan

Function VOX

Alarm function

Broadband/narrowband selectable

Function beep on the keyboard

Dual Watch/dual Reception

Crossband reception/transmission

Function OFFSET

Tone end of transmission

Battery saving function SAVE

Programmable by PC

Built-in key lock

Technical Parameters ID:3179

GENERAL



Frequency range

65-108Mhz(only for FM)

VHF:136-174Mhz(Rx/Tx) UHF:400-520(Rx/Tx)

Memory channels

Up to 128 channels

Frequency stability

2.5ppm

Frequency step

2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHz

Antenna impedance

50Ω

Operating temperature

-4οF to +140οF

 Supply voltage

Rechargeable Lithium-Ion mAh7.4V/1800

Consumption in standby

≤75mA

Consumption in reception

380mA

Consumption in transmission

≤1.4A

Mode of operation

Simplex or semi-duplex

Duty cycle

03/03/54 min.(Rx/Tx/Standby)

Dimensions

58mm*110mm*32mm

Weight

130g(approximate)

TRANSMITTER

RF power

4W/1W

Type of modulation

FM

Emission class

16KΦF3E/11KΦF3E(W/N)

Maximum deviation

≤±5kHz/≤±2.5kHz(W/N)

Spurious emissions

<-60dB

RECEIVER

Receiver sensitivity

0.2μV(at 12dB SINAD)

Intermodulation

60dB

Audio output

1000mW

Adjacent channel selectivity

65/60dB

Note:All specification shown are subject to change without notice
